Wi-Ex zBoost SOHO YX545 Dual-Band Cellular/PCS 60dB Signal Booster/Repeater
|
Item Number: YX545
Manufacturer: zBoost / Wi-Ex
Manufacturer Part No: YX545
Designed for consumers, the zBoost SOHO YX545 dual band cell phone signal booster extends a zBoost Cell Zone (up to 2500 sq ft) for single or multiple user
| Cell phone antennas and amplifiers are frequency specific
(more info). |
|
The Wi-Ex zBoost cell zone signal booster is a revolutionary, patent-pending new product that improves indoor cell phone coverage. zBoost captures the wireless signal outside, brings it inside and enhances, or boosts it - Extending a Cell Zone in your home or office.
Coverage Area: The 60dB zBoost SOHO YX545 can provide up to 2500 sq ft of coverage depending upon the
carrier's exterior signal strength, location of the exterior antenna and the
number and construction of interior walls. For situations where the exterior
signal is poor (worse than -70dB or 3 bars or less) or increased coverage area
is required you have two options:

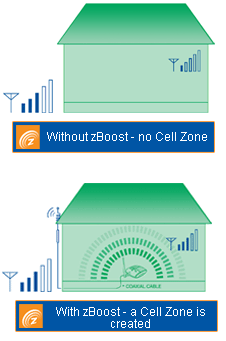

| How It Works
Using a revolutionary, patent pending technology that protects the carrier network, zBoost improves indoor cell phone coverage by capturing and repeating the outside signal, bringing it into the building and enhancing it. This process creates a Cell Zone in the home or office.
The
zBoost system includes:
- Outdoor antenna
(repeats the signal): Can be installed outdoors above the roofline
(best performance) or indoors in the attic or near a window
- Coax cable 50' RG-59 (mini) -
Connects the outdoor antenna to the
base unit
- Base unit: Sleekly
designed, it amplifies the signal and provides oscillation
detection/correction which protects the carrier network using patent
pending technology
- Indoor antenna:
Connects to the base unit to repeat the signal and create a "cell
zone". No physical connection to the phone is required.
- Warranty: 1 Year
Manufacturer's Warranty covering parts and labor
zBoost repeats and
amplifies the signal and is frequency dependent. zBoost works with most
phones and carriers except Nextel.
CheckZip can be used to determine the frequency your carrier is
using in your zip code.
FAQs |
 |
Documents:
|
Amplifier Specifications |
| Frequency |
824-894MHz & 1850-1990MHz |
| System Gain |
60dB (Cellular), 60dB (PCS) |
| Networks |
CDMA, GSM, GPRS, EDGE, EVDO
1xRTT, UMTS, HSPA, 3G |
Power Consumption
Power Supply |
3 Watts standby; 7W max signal
5.0VDC, 2.0A Max |
| Wall Supply Input |
100-240VAC, 50-60 Hz |
| Operating Conditions |
Indoor Use Only (40-105 degrees F) |
| Coverage (open areas) |
up to 2500 sq ft |
| Base Unit Dimensions |
5 x 7 x 1.25 inch |
| Base Unit Weight |
9 oz |
|
Approvals |
| FCC ID |
FCC ID:
SO4YX545-PCS-CEL |
| IC Approved |
Canada IC: 5544A-YX545PCSCEL |
Warranty: 1 Year
Manufacturer's Warranty covering parts and labor
|
|
|
|
|
Optional exterior cable allowing a longer run between the exterior antenna and Wi-Ex zBoost unit. Our higher grade RG-11 cabling provides less than 2/3rds the signal loss of the standard RG-6 cabling.
|
|
|
|
