4KMR-30M: Digital Antenna PowerMax 3 Watt 50dB Gain Marine & RV Dual-Band Wireless Cellular Amplifier / Repeater COMPLETE SYSTEM

4KMR-30M: Digital Antenna PowerMax 3 Watt 50dB Gain Marine & RV Dual-Band Wireless Cellular Amplifier / Repeater COMPLETE SYSTEM
List Price: $499.95
Your Price: No longer available
Out of stock - Please Call
UPC : 4KMR-30M
Manufacturer: Digital Antenna
Manufacturer Part No: 4KMR-30M
Dual-Band Cellular/PCS 50dB Gain Wireless Cell Booste/ repeater kit. Engineered to cover one to two rooms in home, office, RV or boat. Kit includes both exterior and interior antennas, AC and DC power supplies, Coax and mounts (Digital Antenna 4KMR-30M)

Cell phone antennas and amplifiers are frequency specific (more info).

Get more bars with Digital Antenna's PowerMax 4KMR-30M marine and RV wireless cell booster. Designed for boats with cabins and RVs, this new and more powerful 50dB gain wireless cellular repeater systems boosts the signal strength of your cell phone or air card and increases the signal to the tower to up to 3 watts improving transmit and receive signals. The result is clean and clear voice quality with maximum data throughput on all carriers except Nextel/iDEN and 1700MHz AWS (T-Mobile US 3G).

Advantage:

  • Allows you to use your cellular phone up to 20+ miles from cellular tower.
  • Wirelessly enhance multiple cell phones in multiple rooms within 8' to 15' from the system's interior antenna.

PLEASE NOTE: Increased range varies based upon height of outside antenna, type of cable used, cell phone carrier, location of cell tower and obstructions between exterior antenna and cell tower. For maximum range, place outside antenna as high as possible using ultra low loss cable.

Compatibility:

Compatible with all US Cellular (800/850MHz) and PCS (1900MHz) carriers - not compatible with Nextel/iDEN or 1700MHz AWS (T-Mobile US 3G).

Mobile Application:

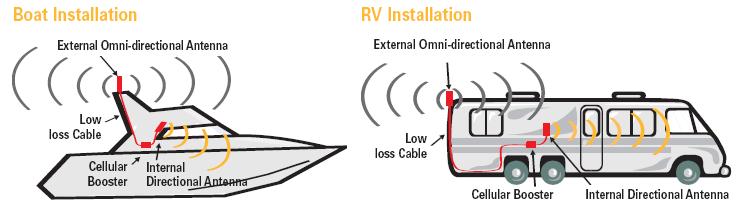

Ideal for boats with cabins and RVs. Requires 12' separation plus a structure between the inside and outside antennas - not for use in open console boats.

4KSBR-50M System Includes:

  • 3 Watt Dual-Band 40dB Gain Cellular/PCS Repeater (DA4000MR)
  • 18" External 9dB Gain Antenna (288-PW)
  • Internal 9dB Gain Directional Panel Antenna (426-PW)
  • 30' of D2340 Cable for External Antenna (240-30NM)
  • 15' of DA240 Cable for Internal Antenna (240-15NM)
  • 1"-14 Threaded Mount (DM194)
  • 1"-14 Threaded Mounting Ferrule (F114)
  • 12VDC Power Converter (DP515)
  • 110 VAC Power Supply (DB255)

Compatibility:

Compatible with all US carriers, cellular and PCS, except Nextel/iDEN and 1700MHz AWS (T-Mobile US 3G).

Digital Antenna PowerMax 50dB Gain 3 Watt Dual-Band Wireless Marine and RV Repeater System Brochure (PDF)

Home Users:

The 4KMR-30M is not designed for home use - the recommended home model is the DA4KSBR-50U.

Specifications:

Amplifier Unit
Frequency Uplink: 824-849MHz & 1850-1910MHz
Downlink: 869-895MHz & 1930-1990Mhz
Modulations All voice and data
Max Output Power 800/850MHz Band: 3W
1900MHz Band: 2W
IP3 44dBm
Dynamic Variable Gain DA4000MR 43dB max
Receive Sensitivity -125dBm
Impedance 50ohms
Noise Figure <3dB
Power Consumption Standby: 5vdc/0.5A
Uplink: 5vdc/1.5A
RF Connections Outside/Inside Antenna Port: Mini-UHF Female
Interior Antenna P/N 426-PW
Radiation Pattern Directional
Gain 9dB
Beamwidth H: 60 degrees, V: 55 degrees
VSWR < 1.5:1
Dimensions 8.5" l x 7" w x 1.7" h
RF Connector Type N Female
Cable 15' DA240 cable with N type male and mini-UHF type male
Installation Supplied wall bracket
Exterior/Outside Antenna P/N 288-PW
Radiation Pattern Omni-directional
Gain 9dBi
VSWR < 1.5:1
Dimensions 18" l x 1" OD
RF Connector Type N Female
Cable 30' DA240 cable N type male and mini-UHF type male
Installation Included 1" - 14 M/M ferrule and short deck mount
Power Cable P/N DP515
Input 9VDC-24VDC
Output 5VDC, 1.5A
Connector Cigarette Lighter
Cord Length 6'
Approvals
FCC Approved FCC ID: PZOSDA4000SBR
IC Approved IC ID: 4260-DA4000SBR

RETURN POLICY: Only new products in perfect condition are eligible for return. A 20% restocking/retesting fee applies. See our return policy for more information.

Digital Antenna 4KMR-30M Marine & RV Cell Phone Repeater System

wpsantennas.com is a Digital Antenna, Inc Master Distributor
