CM-METER-01 - SureCall Signal Detector - Signal Meter - Displays Detected Signal Frequency, Bandwidth and Strength

List Price: $399.00
Your Price: $349.00
You Save: $50.00 (13 %)
IN STOCK
UPC : CM-METER-01
Manufacturer: Cellphone-Mate
Manufacturer Part No: CM-METER-01
The Cellular Downlink Signal Detector - CM-METER-01 Displays detected signal frequency, bandwidth and strength. Designed for the professional installer The SureCall RF signal meter measures RF signal for 4G LTE,2G-3G PCS/Cellular Frequencies.

Cell phone antennas and amplifiers are frequency specific (more info).
The Cellular Downlink  Signal Detector - CM-METER-01

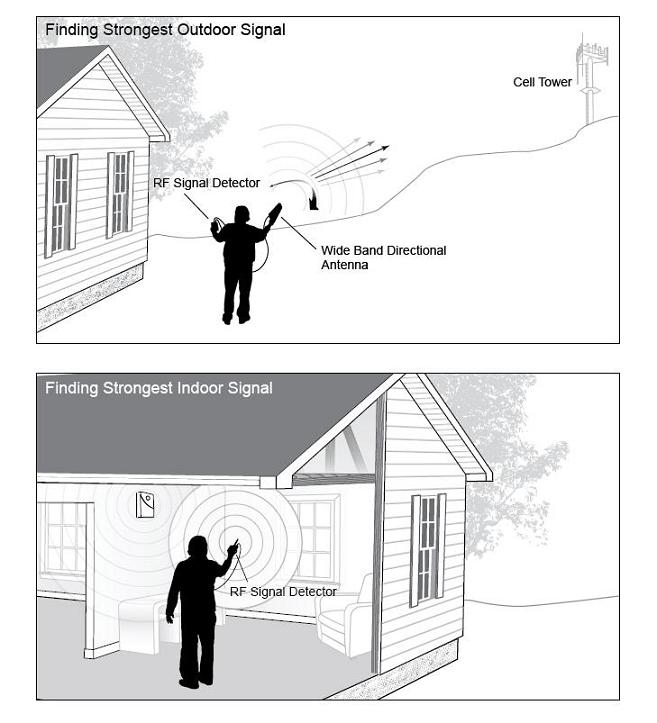

The RF Signal Detector from wpsantennas.com and SureCall is a quad-band detector that finds the available cellular signals in any location (where signal is present) and displays signal attributes on the detector’s LCD screen. This signal detector can be paired with a variety of wpsantennas.com antennas to map the local cellular frequency environment and find the direction of the cell tower that provides the strongest signal. This allows you to precisely point a directional antenna so a wpsantennas.com signal booster can maximize indoor cellular coverage.

The Signal Detector’s LCD screen displays the frequency of a detected signal, the range of pass bandwidth in megahertz (MHz) and the signal strength in decibels (dB). Easy-to-use button controls located just under the screen allow the user to move between frequency bands and channels. This device works with the 800 MHz (Cellular), 1900 MHz (PCS), 2100 MHz (AWS) and 700 MHz LTE (bands 12 and 13) frequency bands. The RF Signal Detector is the perfect tool to help you optimize a wpsantennas.com signal booster installation or tune a directional antenna.



FEATURES
• Measures LTE, AWS, PCS and Cellular frequencies
• 3.5 hrs active life and rechargeable
• Backlit display screen
• Three selectable modes - freq band and block power
• Swih sensitivity - 110dBm

INSTALLER BENEFITS
• Determine which cellular signals,including 3G & 4G, are available for anylocation
• Find the strongest available signal
• Map the local cellular frequencyenvironment
• Precisely position directional antennasfor optimum performance
• Maximize signal coverage indoors

Purpose
• Mapping the frequency environment
• Find the strongest available signal
• Map the local cellular frequencyenvironment
• Pointing directional antennas
• Maximizing wpsantennas.com Signal Booster coverage





Specifications

Part Number cm-meter-01
UPC Number
Max Detectable in-band Signal -38 dBm
Min Detectable in-band Signal -110 dBm
Min Detectable in-band with
10 Mhz BW
-105 dB,
Max recommended RF input -38 dBm
Power Consumption 6V, 700mA
Connectors SMA Female
Dimensions 6.3" x 3.3" x 1.3"
Weight 7.2 oz
