801280 - Wilson AG Pro 75 - Adjustable Gain 65 dB Signal Booster 801280
|
List Price: $999.95
Your Price: $599.95
You Save: $400.00 (40 %)
IN STOCK
Item Number: 801280
Manufacturer: Wilson Electronics
Manufacturer Part No: 801280
In Stock and available for immediate shipment!
Dual-Band Cellular/PCS Wireless Repeater. Kit includes mounting hardware. 65 dB Cellular - 70 dB PCS.
| Cell phone antennas and amplifiers are frequency specific
(more info). |
|
Select Options Below
Exterior Donor Antenna Option
Exterior Antenna Mount
Lightning Protector
Coax Cable - Rooftop Exterior Donor Antenna to Repeater Unit
Coax Cable - Repeater Unit to Interior Broadcast Antenna
Interior Broadcast Antenna Options
|
The wpsantennas.com Wilson 801280 AG Pro 75 Adjustable Gain (65 dB cellular/70 dB PCS) cellular/PCS amplifier significantly improves the performance of your cell phone or cellular data card in small to medium size building applications. Its advanced technology is designed to significantly improve voice and data signal quality and reduce disconnects and drop-outs. The amplifier works with two antennas (sold separately): one antenna communicates with the cell site (the outside antenna) and the other communicates with your cell phone or laptop data card (the inside antenna). The exterior donor antenna must be a high gain directional antenna therefore the unit although dual band is designed to enhance only one provider (unless there happens to be multiple carriers on the serving cellular site).

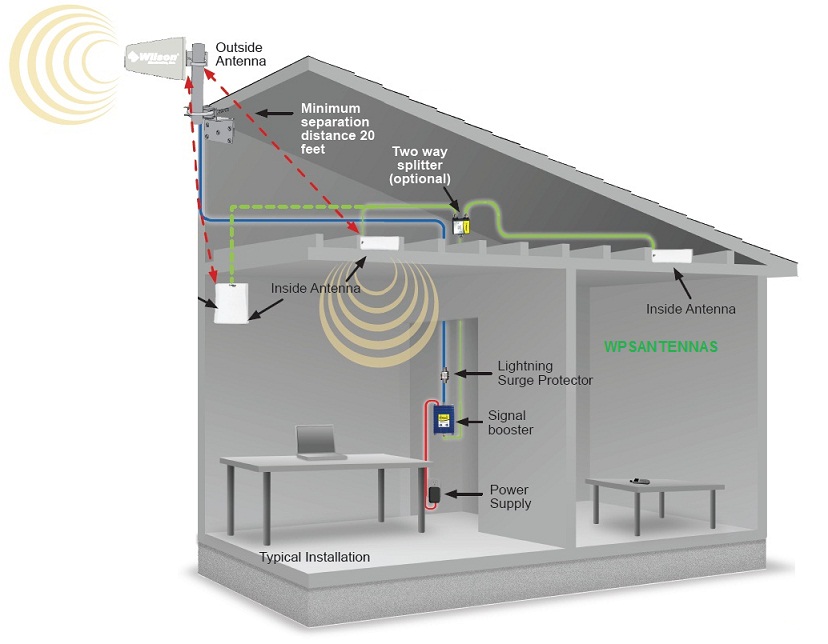

The outside antenna will collect the outside signal and send it through a cable to the amplifier. The signal is then boosted and sent through a cable to the inside antenna, which communicates with your cell phone or data card. When the cell phone or data card transmits, the inside antenna picks up the signal and sends it to the amplifier where it is boosted and sent through the outside antenna to the cell site.
wpsantennas.com offers a wide variety of antennas and accessories, including LMR cabling and lightning protectors, to help you customize your AG Pro Wireless Dual-Band Amplifier for your specific application. Please browse our site or contact a Sales Representative for more information.
Wilson Cellular's new SignalBoost 65 dB DB PRO 801280 Cellular/PCS Amplifier works with all cell phones and laptop data cards except iDEN, Nextel and 1700MHz AWS (T-Mobile US 3G).
Improve cell phone and data card performance in your home or office - anywhere you need a stronger signal indoors!
- Works with all cell phones except iDEN/Nextel and 1700MHz AWS (T-Mobile US 3G)
- Works with all US cellular and PCS carriers
- Oscillation protection
- Extends cell phone battery life
- Made in the USA
- Up to 10 times more powerful than your cell phone
Features:
- Wireless operation
- Works on all generations of CDMA, TDMA and GSM
- For 800MHz (850MHz) Cellular and 1900MHz PCS bands
- Supports multiple phones, data cards simultaneously
- Attractive, sleek design
- Automatic overload/oscillation protection
|
Includes:
- All mounting hardware
- AC power supply
- Installation Guide
- Receiver sensitivity -108dBm, CDMA FER 1/2%
- Up to 2 watts power amplifier
- FCC and IC type accepted
|
Important Information Regarding Coverage:
- Coverage is dependent upon the strength of the signal received from the tower at the outside antenna. At the location that the outside antenna is mounted a signal strength of at least 3 bars is required. Use of a high-gain directional antenna for the outside antenna improves coverage area.
Wilson Cellular 801280 SignalBoost DT Pro Adjustable Gain Desktop Installation Guide(PDF)
|
801280 Specifications
|
| Part Number
|
801280
|
| Frequency
|
824-894MHz, 1850-1990MHz
|
| Passband Gain
|
65 dB Cell / 70 dB PCS
|
Power Output
(reverse link)
|
30.8 dBm (800 MHz)
30.5 dBm (1900 MHz)
|
Power Output
(forward link)
|
26.0 dBm (800 MHz)
25.2 dBm (1900 MHz)
|
| Impedance
|
50 Ohms
|
| Noise Figure
|
3.5dB Nominal: Forward Link
5.5 dB Nominal: Reverse Link
|
| Isolation
|
> 90dB
|
| Power Requirements
|
110-240 V AC, 50-60 Hz, 8 W
|
| Connectors
|
N Female
|
| Dimensions
|
5.7" x 4.2" x 1.5"
|
| Weight
|
0.48lb
|
|
|
|
Your Price: Starting at $34.95
Custom length ultra low loss cables for longer cable runs. Custom made, allow 1 extra day for assembly. Non-returnable.
|
List Price: $149.95
Your Price: $129.95
You Save: $20.00 (13 %)
Protects amplifier from surges resulting from outside antenna being struck by lightning. Includes Ground Wire, Coax jumper and three different types of grounding devices.
|
Dual-band panel antenna for use as interior antenna in Amplifier/Repeater/BDA Systems.
Compatible with all generations of CDMA, GSM and TDMA including GSM, GPRS, EDGE, UMTS, HSDPA, CDMA, 1xRTT, EVDO, TDMA, AMPS, iDEN, Nextel
| | |
