813426 - Sleek 4G - 5 Band Cell Phone Signal Booster with Built-in Antenna - 2G, 3G and 4G
|
List Price: $239.95
Your Price: $139.95
You Save: $100.00 (42 %)
Hot Price!! Will not last long!!
Item Number: 813426
Manufacturer: Wilson Electronics
Manufacturer Part No: 813426
The Wilson Sleek Boosts 4G signals on all major carrier networks in North America. Get peak cellular performance in
your vehicle on all major carriers’ 2G, 3G & 4G networks.
| Cell phone antennas and amplifiers are frequency specific
(more info). |
|
Wilson Electronics Sleek 4G 813426 helps users reduce dropped calls, increases data rates in weak signal areas and originate calls in "dead spots". The Sleek along with an external vehicular antenna will increase your phones output power to the cell cite while improving its ability to hear signals it normally cannot, keeping your cell phone more reliably connected to the nearest
broadcast site. Designed for simple set up the Sleek can be easily moved from vehicle to vehicle
or used as a desktop signal booster.
Built into the Sleek cradle is a Wilson bi-directional signal amplifier and battery charging port. The cradle is ideal for hands free operation in conjunction with a user's headset or Bluetooth device.
FCC requires to never use the cell phone in the cradle next to your ear, but if
you choose to, it works quite well.
Here's how the Wilson Sleek system works: A Wilson magnetic mount antenna
(included in select kits - part number 301126) mounted on the outside of your vehicle communicates with the cell site, and the built-in Sleek cradle amplifier booster communicates with your cell phone. The outside antenna collects weak cellular signals and sends them to the amplifier. The amplifier boosts those signals and sends transmits them through the cradle amplifier/booster, significantly improving the performance of your phone.
In select cases, the signal bars may not increase, but the call quality and data
performance should be enhanced.
Note: In order to maintain improved signal, your phone must be left in Sleek cradle during usage (i.e. you must use a headset or hands free car kit.)
Features:
- Reduces dropped calls, extends signal range, and increases data rates
- Built in amplifier boosts signals to and from cell sites
- Up to 20 TIMES more output power to cell site when in a vehicle
- Receives weak signals the phone alone may not
- Built-in USB port for device battery charging. *Standard USB port.
Will not adapt to optional mini-usb jumper models 859966, 859967 and
859969.
- Extends battery life (Amplifier enables phone to work at reduced power)
- Simplifies hands free operation
- Installs in minutes (no special tools required)
- Package includes everything needed (plug-and-play) Unless purchasing the
product number 813425. The 813425 will only include the Sleek wireless Signal
Booster cradle, power supply, and mounting bracket.
- Attractive, compact design
- Adjustable arms to fit most any phone
Kit Includes
- Sleek all in one cradle combo: Amplifier/charger
- Outside vehicle mini magnet-mount antenna
- Cigarette lighter power adapter
- Installation guide
- 30-day, "No Questions Asked" money-back guarantee
- Limited one-year product warranty
- Use only with supplied cigarette lighter power supply
Recommended Accessories (not included in kit)
Catalog Page (PDF)

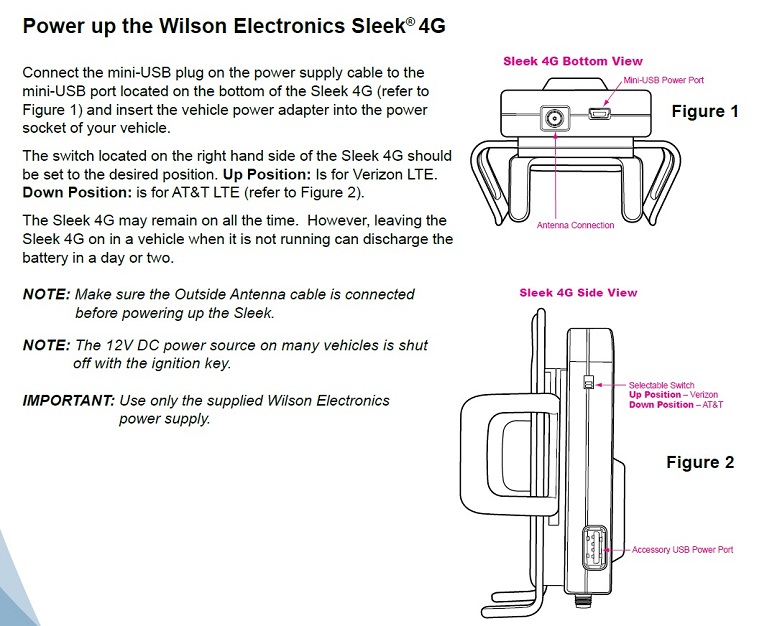

Installation Instructions (PDF)
|
Specifications
|
| Part Number
|
813426
2B3425 |
Frequency
*On LTE 700, Selector switch
on side of device.
Unit operates on one band of LTE at a give time.
** May not work on Sprint LTE G Block 1900 Mhz.
Initial models do not work
on this spectrum.
| 698-746Mhz*
746-787MHz*
824-894MHz,
1850-1990MHz
**
1710-2155MHz |
| Gain
|
20dB /20dB
|
| Max Output Power
|
2 W
|
| Noise Figure
|
3.0 dB Nominal
|
| Flatness
|
+-4dB
|
| Isolation
|
40dB
|
| Power Requirements
|
5.5V
DC, 2.5A |
| Connectors
|
SMA Female
|
| Dimensions
|
2.25 x 4.25 x 2.5(inches)
|
| Weight
|
2.5 oz
|
NOTICE TO DRIVERS IN CALIFORNIA AND MINNESOTA: State law prohibits drivers in California and Minnesota from using suction mounts on their windshields while operating motor vehicles. Other dashboard or friction mounting options should be used. Wpsantennas.com does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice. (See California Vehicle Code Section 26708(a); Minnesota Statutes 2005, Section 169.71)
|
