811200 - Wilson Cellular 800MHz/1900MHz Dual-Band Direct Connection Amplifier with GPS

List Price: $279.95
Your Price: $269.95
You Save: $10.00 (4 %)
IN STOCK
Item Number: 811200
Manufacturer: Wilson Electronics
Manufacturer Part No: 811200
Direct Connect 3 Watt Dual-Band (Cellular/800MHz, PCS/1900MHz, GPS/1575MHz ) Inline Cellular Signal Booster for cell phones, cellular data cards, wireless cellular modems and other cellular devices. (Wilson Cellular 811200)

Cell phone antennas and amplifiers are frequency specific (more info).

Select Options Below

Portable Vehicle Antenna Options - Lower Kit Pricing When Selecting From Options Below!
Bonus Buy: Add Cigarette lighter power plug for just $4.95 each (regular $14.95)
The Direct Connect (inline) Amplifier improves RF coverage in areas with no signal or low signal strength. The unit amplifies 800MHz (Cellular), 1900MHz (PCS) and also contains 1575MHz (GPS) bypass to allow for GPS reception.

Works with all Cellular/PCS Service Providers except iDEN (Nextel/Southern LINC/Mike) and 1700MHz AWS (T-Mobile US 3G)

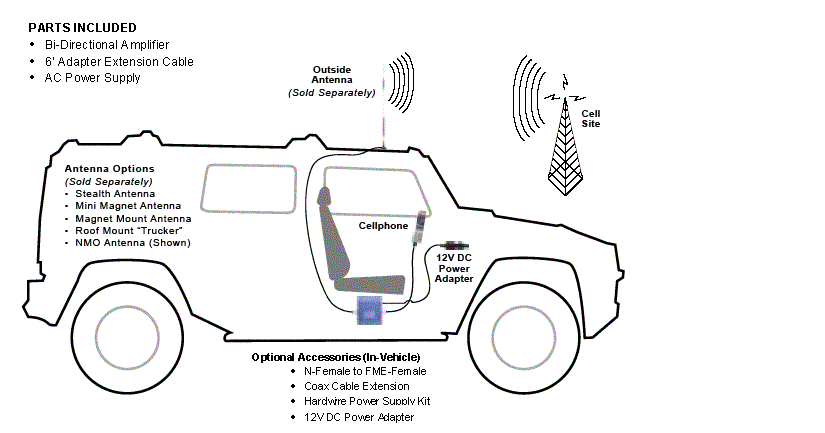

How the unit functions:

The 800MHz and 1900MHz cellular signal from the cell site is received by the Wilson Cellular antenna (sold separately). The signal is then amplified and transmitted to your phone through the Wilson Cellular phone adapter cable (sold separately). When the phone transmits, the signal is sent to the amplifier through the adapter and then amplified and sent to the cell site through the outside antenna.

Compatible with:

All US Cellular/PCS carriers except iDEN carriers such as Nextel, SouthernLinc, Mike (Canada). iDEN users should use the 3 Watt Direct Connection Amplifier for Nextel/iDEN. Not Compatible with 1700MHz AWS (T-Mobile US 3G).

Compatible carriers include: Verizon, GSM GSM/GPRS/TDMA, Cingular, Alltel, Sprint PCS, T-Mobile (850MHz, 1900MHz), Cellular One, US Cellular, Metro PCS, Virgin Mobile, Cricket, Qwest, Boost Mobile, etc.

Ideal for use with car kits requiring an external antenna. Adapter may be required to connect to your particular car kit.

Includes:

  • 811200 Bi-Directional Dual-Band (800MHz/1900MHz) Amplifier
  • 6' Adapter Extension Cable
  • AC Adapter

Requires (not included):

  • External Antenna with FME Female connection (Wilson Cellular Antenna)
  • Phone Specific Antenna Adapter with FME Male connection to connect directly to your phone. With appropriate adapter may be connected to most full install car kits which support an external antenna.

Optional Accessories (not included):

Catalog Page (PDF)



Specifications

Part Number 811200
UPC Number 813986007631
Frequency 824-894MHz (Cellular)
1850-1990MHz (PCS)
1575MHz (GPS)
Passband Gain (nominal) 20 dB (800MHz and 1900MHz)
8 dB (1575 MHz)
Max Output Power 3 watts
Noise Figure (down) 3 dB Nominal
Isolation > 90dB
Power Consumption 12V, 5A - 1.5A (Subject to uplink power)
Connectors FME Male
Impedence (input/output) 50 ohms
Dimensions 5 x 3.5 x 1.2 (inch)
Weight 1.03 lbs or 0.468 kg
