801247 - Wilson 801247 SIGNALBOOST™ DT Adjustable Gain In-Building Wireless 800/1900MHz Signal Booster with Smart Technology II™
|
List Price: $389.95
Your Price: $359.95
You Save: $30.00 (8 %)
IN STOCK
Item Number: 801247
Manufacturer: Wilson Electronics
Manufacturer Part No: 801247
Easy to Install Kit!
Dual-Band Cellular/PCS Wireless Repeater Kit designed for desktop use. Kit includes both exterior and interior antennas, cable and mounting hardware. (Wilson 801247)
| Cell phone antennas and amplifiers are frequency specific
(more info). |
|
Wilson Cellular's new SignalBoost DT Cellular/PCS Amplifier gives improved data signal quality for your mobile phone or data card. The Signalboost DT supports multiple cell phones and laptop data cards simultaneously and works on most generations of CDMA, TDMA and GSM networks. Not compatible with iDEN, Nextel and 1700MHz AWS (T-Mobile US 3G).
Improve cell phone and data card performance in your home or office - anywhere you need a stronger signal indoors!
- Works with most cell phones and data cards except iDEN/Nextel and 1700MHz AWS (T-Mobile US 3G)
- Covers up to 8 ft away from unit
- Works with all US cellular and PCS carriers
- Oscillation protection
- Extends cell phone battery life
- Comes with everything you need - plug and play
- Made in the USA
- Up to 10 times more powerful than your cell phone
Features:
- Wireless operation
- Works on all generations of CDMA, TDMA and GSM
- For 800MHz (850MHz) Cellular and 1900MHz PCS bands
- Supports multiple phones, data cards simultaneously
- Attractive, sleek design
- Automatic overload/oscillation protection
- Receiver sensitivity -108dBm, CDMA FER 1/2%
- Up to 2 watts power amplifier
- FCC and IC type accepted
|
Includes:
|
|
801247 Specifications
|
| Part Number
|
801247
|
| Frequency
|
824-894MHz,1850-1900MHz
|
| Gain
|
55dB / 55dB
|
| Linear Output Power
|
+30dBm
|
| Max Output Power
|
2.5 watts
|
| Typical Output
|
+30dBm / +10dBm
|
| Noise Figure
|
3.5dB Nominal
|
| Isolation
|
> 90dB
|
| Power Requirements
|
110-240VAC, 50-60Hz, 0.6A
|
| Connectors
|
TNC/Female (inside antenna)
F/Female (outside antenna)
|
| Dimensions
|
6.2" x 4.2" x 1.5"
|
| Weight
|
0.64lb
|

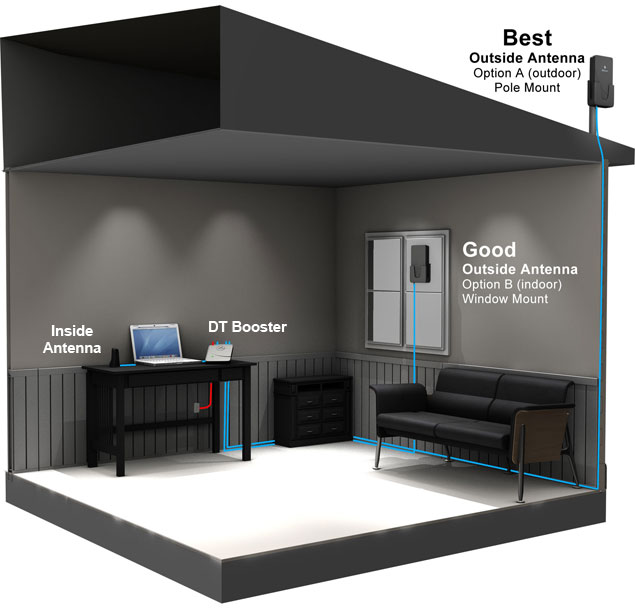

Wilson Cellular 801247 SignalBoost DT Desktop Amplifier Install Guide
Optional Accessories for the Wilson Cellular 801247 SignalBoost DT Kit
The following Wireless Extenders zBoost accessories are compatible with the SignalBoost DT Kit:
Cable Notes:
Please note that the Wilson 801247 Signalboost uses 75 ohm cable between the exterior antenna and base unit, not standard 50 ohm cellular cable therefore our standard extensions are not compatible. For additional cabling, you can use high grade RG-6 cable. For total runs over 70', we highly recommend the antenna upgrade as well as replacing the RG-6 cable with 75 ohm RG-11 cable (lower loss cable.) |
