801213 - Wilson Cellular 40dB In-Vehicle Wireless Dual-Band 800/1900MHz Cellular/PCS Amplifier Kit (Includes Magnetic Mount Antenna and Cradle Plus)
|
List Price: $459.95
Your Price: $419.95
You Save: $40.00 (9%)
IN STOCK
Item Number: 801213
Manufacturer: Wilson Cellular / Wilson Electronics
Manufacturer Part No: 801213
Dual-Band Cellular/PCS 40 dB Wireless Mobile Amplifier kit. 3 Watts of output power without a physical connection to the cell phone enhancing multiple cell phones or cellular data cards. Includes Magnetic Mount Antenna and Cradle Plus (Wilson 801213)
| Cell phone antennas and amplifiers are frequency specific
(more info). |
|
This kit contains the
Wilson Cellular 801201 Vehicle Repeater, the
301103 Magnetic Mount Antenna,
and the Wilson Cellular Cell
Phone Cradle Plus
- everything you need.
Wilson Cellular In-Vehicle Amplifiers extend
cellular services in poor coverage areas by amplifying both transmit and receive
signals. The amplifier reduces problems with signal fades and dropped calls
while improving voice quality, service range and access. Wilson Cellular
amplifiers are network-compatible and enhance the cellular phone user's
satisfaction without compromising the operation of the cellular system.
Features:
- Passes TIA/EIA-98-E Transmit test for
evaluation CDMA Cellular Phones
- Power Control Logic ensures maximum output
power is within Cellular Standards
- Allows multiple phones to be used
simultaneously
- Allows cellular phone to operate properly
with all types of modulations including CDMA
- Maximum 3 Watts output power
- Designed for all cellular systems: AMPS,
CDMA, EDGE, GPRS, GSM and TDMA (not compatible with Nextel/iDEN)
- Automatic Gain Control
- Overload Protection Circuit - Protects cell
system from overload
- Automatic Reset - if overload occurs
- FCC Type Accepted
|
Application Note: Mobile cell phone repeaters are great for use in urban areas where you are experiencing dropped calls and poor connections. For usage in rural areas where signal is worse, a direct connect (inline) cell phone amplifier will perform much better. |
What are the benefits of
Wilson Cellular Wireless Mobile Amplifiers?

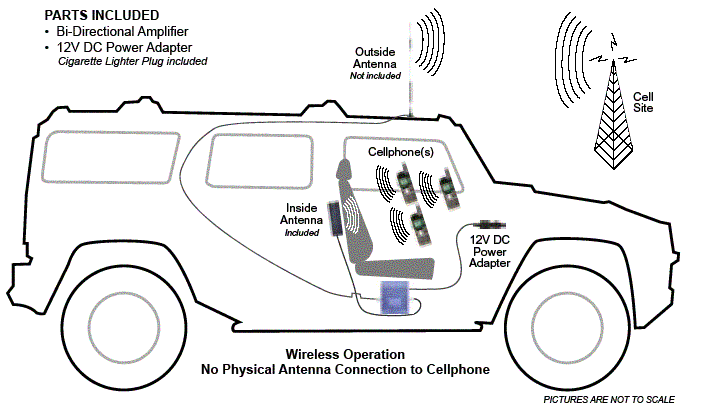

The Wilson Cellular Wireless Amplifiers allow
one or more users to benefit from an outside antenna and amplifier without a
physical connection to the cell phone. This eliminates the need for an external
antenna connection on the cell phone.
Note: In order to maintain improved signal, your phone
must be left in
cradle during usage (i.e.
you must use a headset or hands free car kit.)
Wireless Cell Phone Amplifier
vs Direct Connection Amplifier?
The Wilson Cellular Wireless Amplifiers and
Direct Connection Cell Phone Amplifiers
perform comparably in urban situations. Both amplifiers transmit up to 3 Watts of power to the cell
site and receive a signal as weak as -110dBm. For rural applications, the direct connect (inline) cell phone amplifier
will perform better and is recommended.
Does the Wilson Cellular
Wireless Mobile Amplifier affect a carrier's cell site?
Wilson Cellular's Wireless Mobile Amplifiers
have Smart Technology that automatically adjusts the power based upon the cell
site's requirements. This patent pending technology ensures that the power to
the cell site is within the carrier's specifications.
Includes:
Notes:
- The 801201 Mobile Cell Phone Repeater uses different power
supplies than the previous amplifiers. You can not use the older power
supplies 859903, 859904 or 859905.
Compatibility:
- Compatible with all 800MHz Cellular
and 1900MHz PCS providers (CDMA, TDMA, GSM, Analog). For example, Verizon,
Cingular, Alltel, US Cellular, Midwest Wireless, Cellular One, Western
Wireless, Sprint PCS, T-Mobile, Qwest and many more
- Not compatible with
iDEN (Nextel, Southern LINC, Mike)
801201 Mobile Cell Phone Repeater Catalog Page (PDF)
801201 Mobile Cell Phone Repeater Flyer / Amplifier Comparison (PDF)
801201 Mobile Cell Phone Repeater Installation Guide (PDF)
|
Specifications |
| Part Number |
|
801213 |
| Frequency |
|
824-894MHz,
1850-1990MHz |
| Gain (up/down) |
|
40dB /
45dB |
| Max Output Power |
|
3 Watts (Cell Site Controlled) |
| Max RF (downlink) |
|
+10dBm |
| Noise Figure (down) |
|
3.5 dB Nominal |
| Flatness |
|
±3 dB / ±4 dB |
| Isolation |
|
> 90dB |
| Power Consumption |
|
6V, 3 A max (subject to Uplink
Power) |
| Connectors |
|
FME Male, 50 Ohms |
| Dimensions |
|
4.5
* 3.5 * 1.25 (inch) |
| Weight |
|
1.5 lbs |
NOTICE TO DRIVERS IN CALIFORNIA AND MINNESOTA: State law prohibits drivers in California and Minnesota from using suction mounts on their windshields while operating motor vehicles. Other dashboard or friction mounting options should be used. Wpsantennas.com does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice. (See California Vehicle Code Section 26708(a); Minnesota Statutes 2005, Section 169.71)
|
