801201 - Wilson Cellular 40dB In-Vehicle Wireless Dual-Band 800MHz/1900MHz Cellular/PCS Bi-Directional Amplifier

Dual-Band Cellular/PCS Wireless Mobile Amplifier with Smart Technology (TM). Allows the benefit of an external antenna and up to 3 Watts output power with a physical connection to the cell phone. (801201)
List Price: $389.95
Your Price: $239.95
You Save: $150.00 (38 %)
Out of stock - Please Call
Item Number: 801201
Manufacturer: Wilson Electronics
Manufacturer Part No: 801201
Dual-Band Cellular/PCS 40 dB Wireless Mobile Amplifier. 3 Watts of output power without a physical connection to the cell phone enhancing multiple cell phones or cellular data cards simultaneously (Wilson 801201)

Cell phone antennas and amplifiers are frequency specific (more info).

Wilson Cellular In-Vehicle Amplifiers extend cellular services in poor coverage areas by amplifying both transmit and receive signals. The amplifier reduces problems with signal fades and dropped calls while improving voice quality, service range and access. Wilson Cellular amplifiers are network-compatible and enhance the cellular phone user's satisfaction without compromising the operation of the cellular system.

Note: The 801201 vehicle repeater does not include the exterior vehicle antenna. For maximum performance, we highly recommend the Laird Phantom.

Features:
  • Passes TIA/EIA-98-E Transmit test for evaluation CDMA Cellular Phones
  • Power Control Logic ensures maximum output power is within Cellular Standards
  • Allows multiple phones to be used simultaneously
  • Allows cellular phone to operate properly with all types of modulations including CDMA
  • Maximum 3 Watts output power
  • Designed for all cellular systems: AMPS, CDMA, EDGE, GPRS, GSM and TDMA (not compatible with Nextel/iDEN)
  • Not compatible with 1700MHz AWS (T-Mobile US 3G), 700MHz (Verizon 4G)
  • Automatic Gain Control
  • Overload Protection Circuit - Protects cell system from overload
  • Automatic Reset - if overload occurs
  • FCC Type Accepted
Application Note:

Mobile cell phone repeaters are great for use in urban areas where you are experiencing dropped calls and poor connections. For usage in rural areas where signal is worse, a direct connect (inline) cell phone amplifier will perform much better.

What are the benefits of Wilson Cellular Wireless Mobile Amplifiers?

The Wilson Cellular Wireless Amplifiers allow one or more users to benefit from an outside antenna and amplifier without a physical connection to the cell phone. This eliminates the need for an external antenna connection on the cell phone.

Installation Options:

  • Option A: The inside antenna (interior low profile antenna) should be mounted 1 foot or less from where the phone is to be used. The best place to mount the inside antenna is shoulder height on the side of the drivers seat. The closer the inside antenna is placed to the phone, the better the performance. Do not mount the interior antenna within 4" of metal.
  • Option B: For convenience, the small mini antenna (359914) can be directly attached to the phone and will perform similar to an 811201 - Dual Band Direct Connect Amplifier. The mini antenna must be connected directly to the back of the phone using the included velcro. It must be located as close to the phone's antenna as possible. The mini antenna will not work when away from the phone as the interior low profile antenna will. Connect the mini antenna (359914) to the amplifier using the 6' extension cable. NOTE: You can only use the included mini antenna (359914) - you absolutely must not directly connect the amplifier to the phone using any other adapter. Doing so will damage your phone.
  • May also be used in conjunction with the Wilson Cellular Cell Phone Cradle Plus (the cradle would be used as the interior antenna)

Wireless Cell Phone Amplifier vs Direct Connection Amplifier?

The Wilson Cellular Wireless Amplifiers and Direct Connection Cell Phone Amplifiers perform comparably in urban situations. Both amplifiers transmit up to 3 Watts of power to the cell site and receive a signal as weak as -110dBm. For rural applications, the direct connect (inline) cell phone amplifier will perform better and is recommended.

Does the Wilson Cellular Wireless Mobile Amplifier affect a carrier's cell site?

Wilson Cellular's Wireless Mobile Amplifiers have Smart Technology that automatically adjusts the power based upon the cell site's requirements. This patent pending technology ensures that the power to the cell site is within the carrier's specifications.

Includes:

  • Interior low profile antenna (301127)
  • Cigarette lighter power plug (859913)

Requires Exterior Cell Phone Antenna:

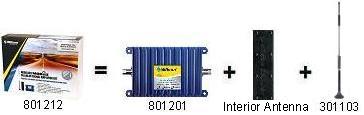

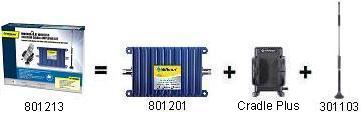

Wilson Electronics offers the 801201 amplifier in a number of different packages to fit your needs. Click on the amplifier package below that is right for you:

Notes:

  • The 801201 Mobile Cell Phone Repeater uses different power supplies than the previous amplifiers. You can not use the older power supplies 859903, 859904 or 859905.

Compatibility:

  • Compatible with all 800MHz Cellular and 1900MHz PCS providers (CDMA, TDMA, GSM, Analog). For example, Verizon, Cingular, Alltel, US Cellular, Midwest Wireless, Cellular One, Western Wireless, Sprint PCS, T-Mobile, Qwest and many more.
  • Not compatible with iDEN (Nextel, Southern LINC, Mike)
  • Not compatible with 1700MHz AWS (T-Mobile US 3G), 700MHz (Verizon 4G)

801201 Mobile Cell Phone Repeater Catalog Page (PDF)
801201 Mobile Cell Phone Repeater Flyer / Amplifier Comparison (PDF)
801201 Mobile Cell Phone Repeater Installation Guide (PDF)


Specifications

Part Number 801201
Frequency 824-894MHz,
1850-1990MHz
Gain (up/down) 40dB / 45dB
Max Output Power 3 Watts (Cell Site Controlled)
Max RF (downlink) +10dBm
Noise Figure (down) 3.5 dB Nominal
Flatness ±3 dB / ±4 dB
Isolation > 90dB
Power Consumption 6V, 3 A max (subject to Uplink Power)
Connectors FME Male, 50 Ohms
Dimensions 4.5 * 3.5 * 1.25 (inch)
Weight 1.5 lbs





NOTICE TO DRIVERS IN CALIFORNIA AND MINNESOTA: State law prohibits drivers in California and Minnesota from using suction mounts on their windshields while operating motor vehicles. Other dashboard or friction mounting options should be used. Wpsantennas.com does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice. (See California Vehicle Code Section 26708(a); Minnesota Statutes 2005, Section 169.71)
